Product Name : H-Series
Product Introduction

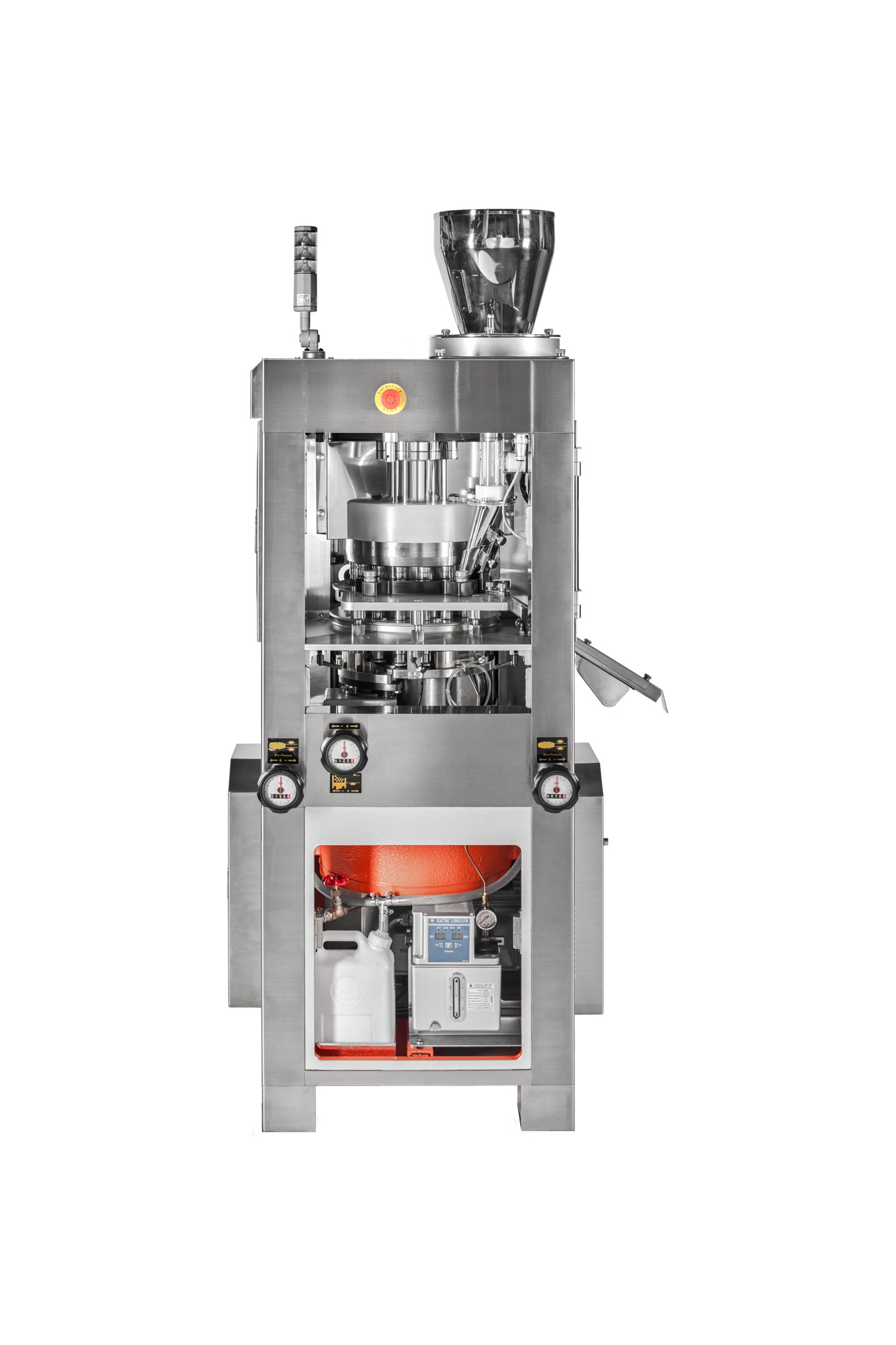

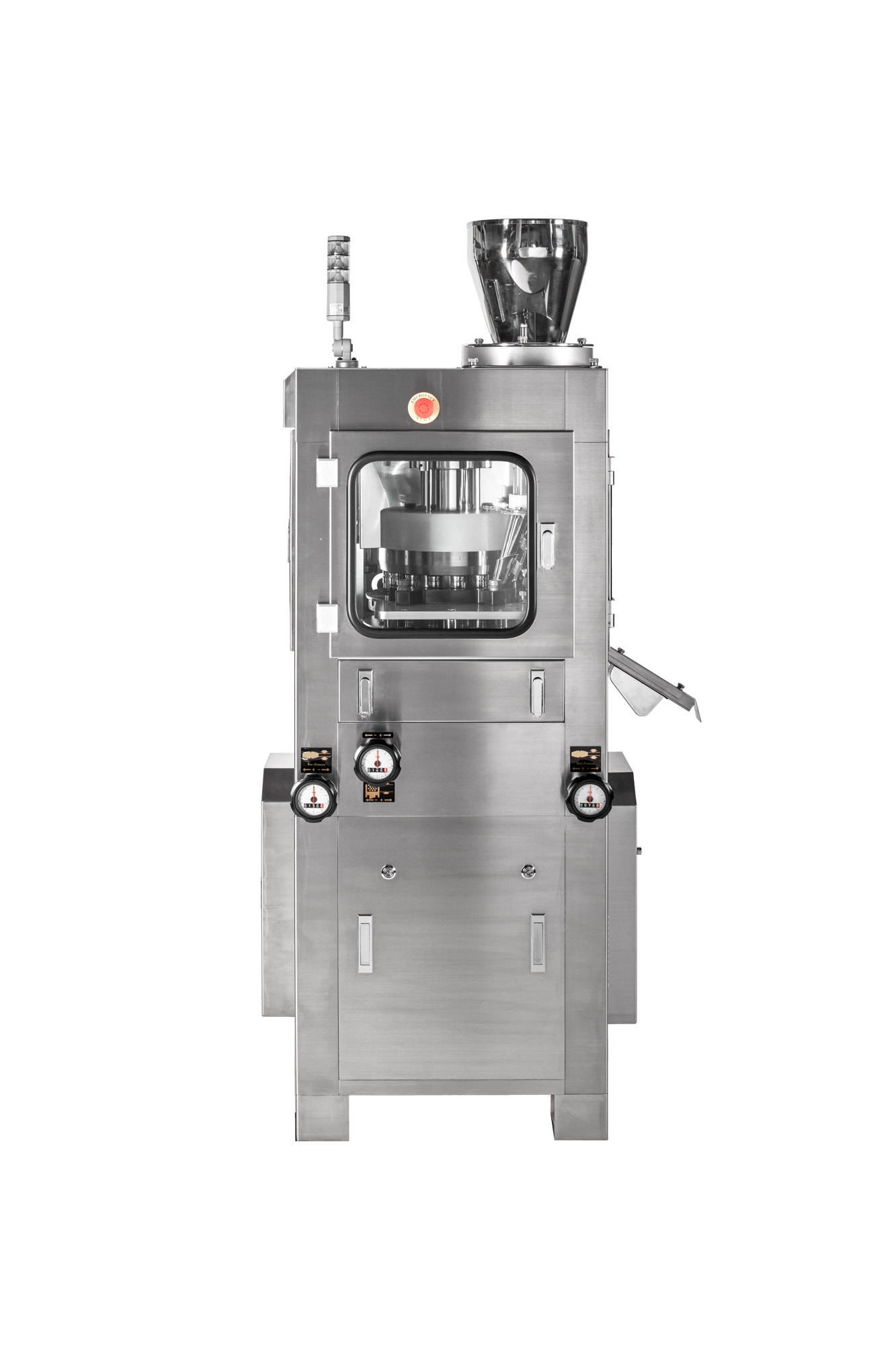

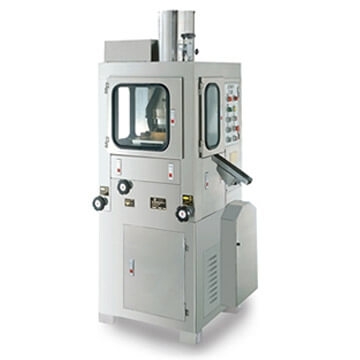

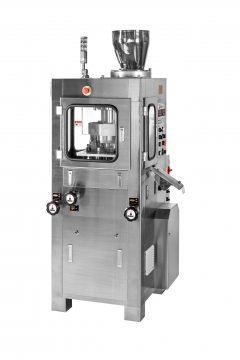

High -Speed Rotary Tabletting Machine "H" Series Presses Offer :

  • Accurate tabletting
  • Compression in two stages
  • Tabletting compartment separated from drive mechanism
  • Easy maintenance & cleaning
  • Meets GMP

Our "H" series Rotary Tablet Presses, Models JC-RT-16H / JC-RT-20H / JCRT-24H have proven to be reliable for-:

  • Efficient medium size production runs, with capacity upto 100,000 tablets per hour;
  • Laboratory and pilot plant studies.

Cam Design & Lubrication

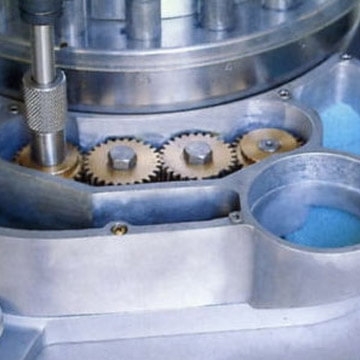

A central lubrication system supplies oil continuously to lower punches, while grease applied manually lubricates upper punches. The ejection cam is manufactured from special tool steel for extended life, while a double sided lifting cam is provided.

Upper & Lower Punch Seals

The scrapers seals for the upper punches protect tablets from oil drip, while the dust seals on the lowers prevent the punches from binding and reduce wear on the cam. This combined with an efficient dust extraction system allows prolonged run with little downtime for cleaning.

Direct Rotation of Turret

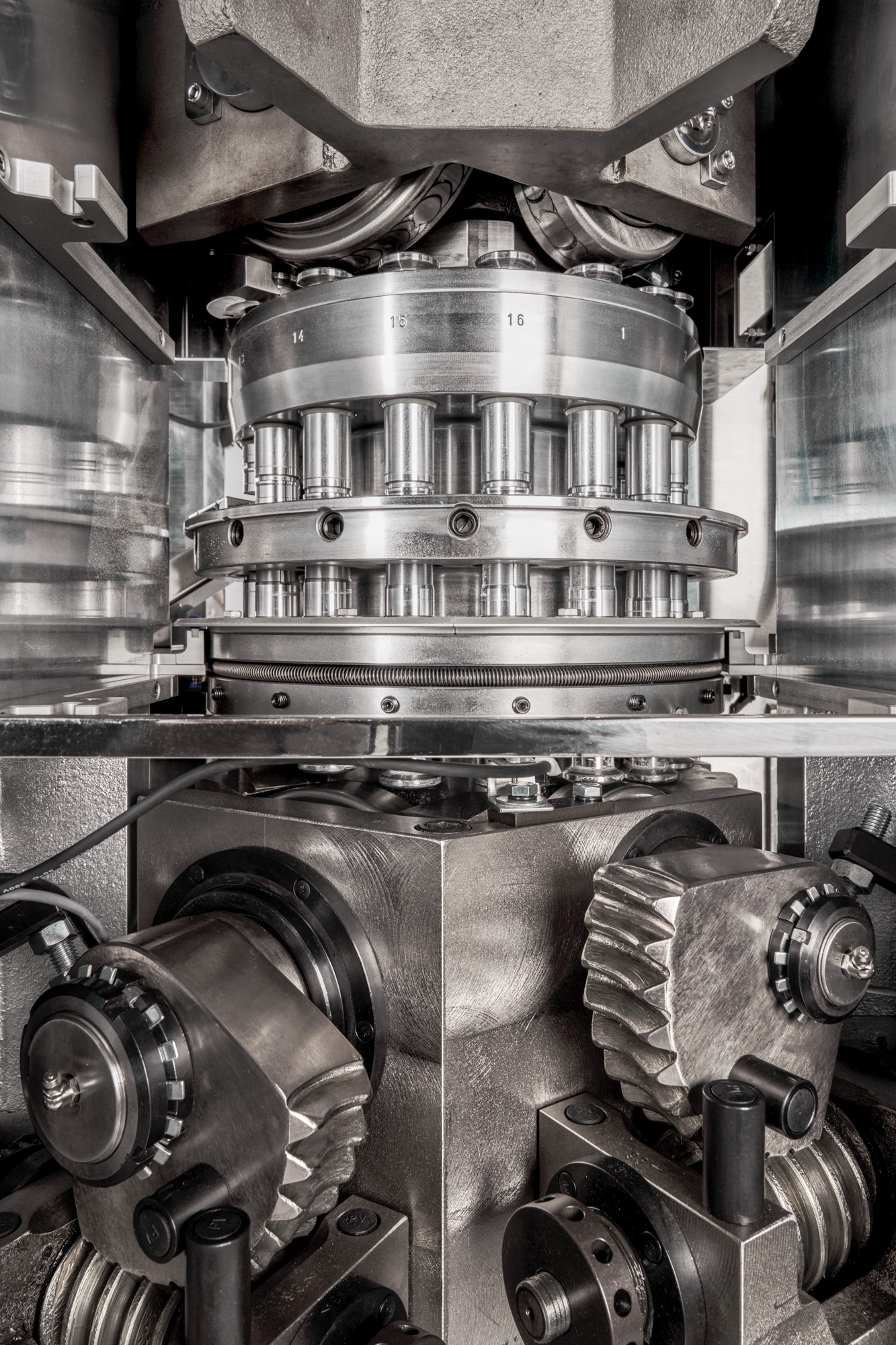

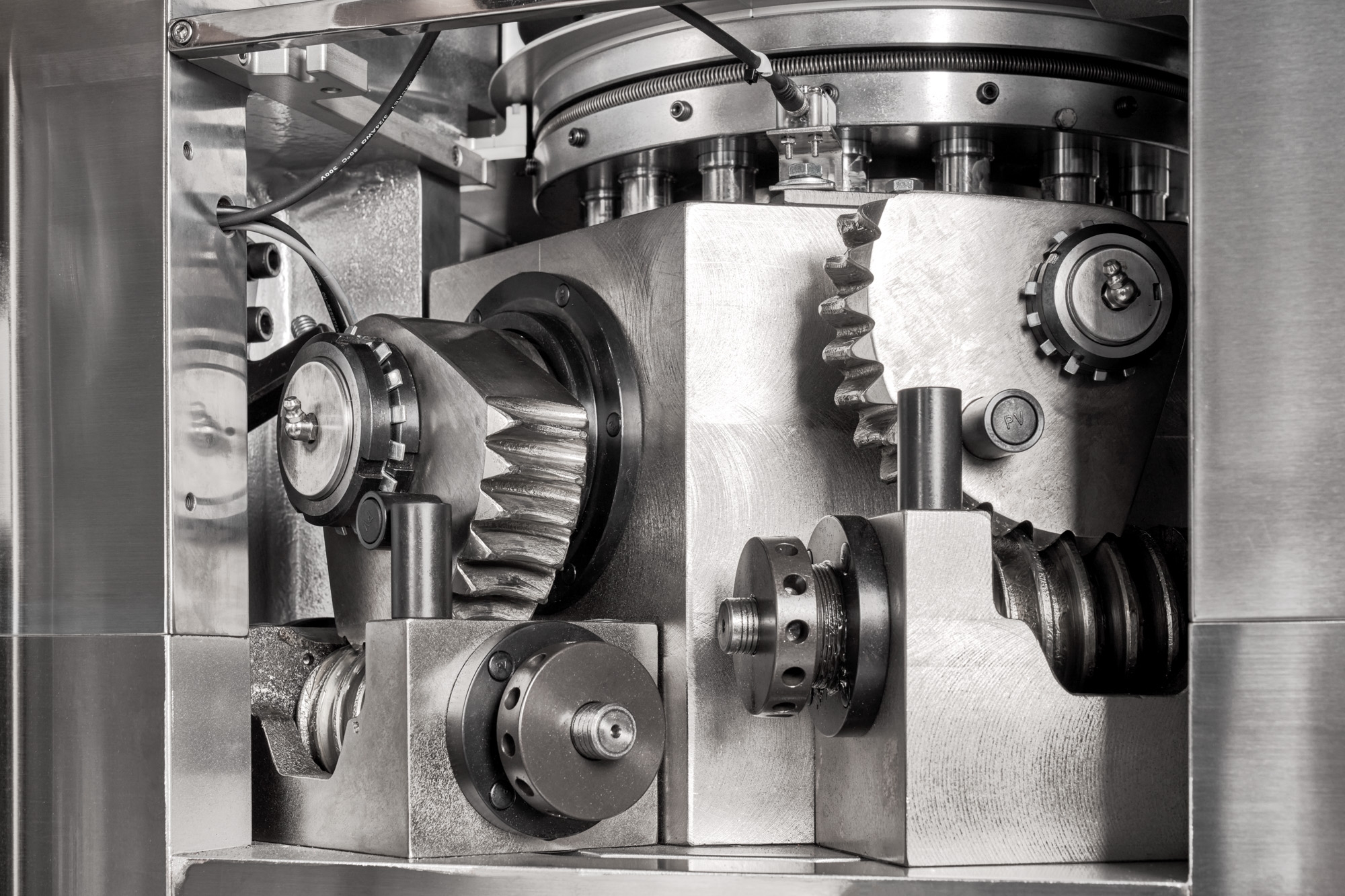

Direct rotation of the turret by the main shaft reduces the moise level; it provide maximum protection to the gears and the drive system.

Pre-Compression and Main Compression

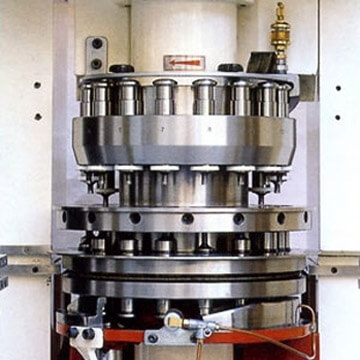

High pre-compression of 3000 kgs insures trouble-free processing of difficult granules. It helps in the direct compaction of materials, reducing lamination and capping. Pressure rollers are made of special tool steel that ensures uniform pressure application. The double bearings are fitted, which minimize wearing of the rollers.

Feeding Material

The feeder support platform is preset at the factory to the correct height and should not require adjustment. Quick release clamping screws allows removal of the feeder for cleaning and tool changeover without the need to disturb the feeder platform setting.

Mechanical Feeder

The two chambers feeding system has been improved further. It is driven from top by a variable speed motor. The unit can be assembled or disassembled easily.

Cleaning and Tool Changeover

The detachable panels can be removed easily, which reveal the entire bottom punch cams. This allows easy removal of the bottom punches. Upper punch monitoring device is available that would switch off the machine in the event of punch tightness.

Type of tooling EU"D" IPT"D" EU"DB" EU"B" IPT"B" EU"BB" IPT"BB"
Tablet diameter Max. 25.4mm (1" ) 19mm(caplet) (0.74") 16mm (0.625") 13mm (0.50")
Production capacity (tablets/hour) * 17,000-69,000 21,500-86,000 25,900-103,000
Revolution of turret / Min (60 cyc)* 18-72 RPM
Depth of fill adjustable to 19mm (0.75") 117mm (0.67")
Maximum operating pressure 10,000kgs (22,000lbs)
Maximum pre-pressure 3,000kgs (6,600lbs)
Diameter of die 38.1mm(1.5") 30.16mm (1.1875") 24mm(0.945")
Height of die 23.81mm (0.9375") 22.22mm (0.875")
Nominal diameter of punch body 25.4 mm (1") 19 mm(0.75")
Turret P.C.D. 253 mm
Power consumption 3HP (2.2kw)
Machine dimensions 850x790x1,710mm (not including hopper)
Net weight 1,200 kgs (2,646 Ibs)
