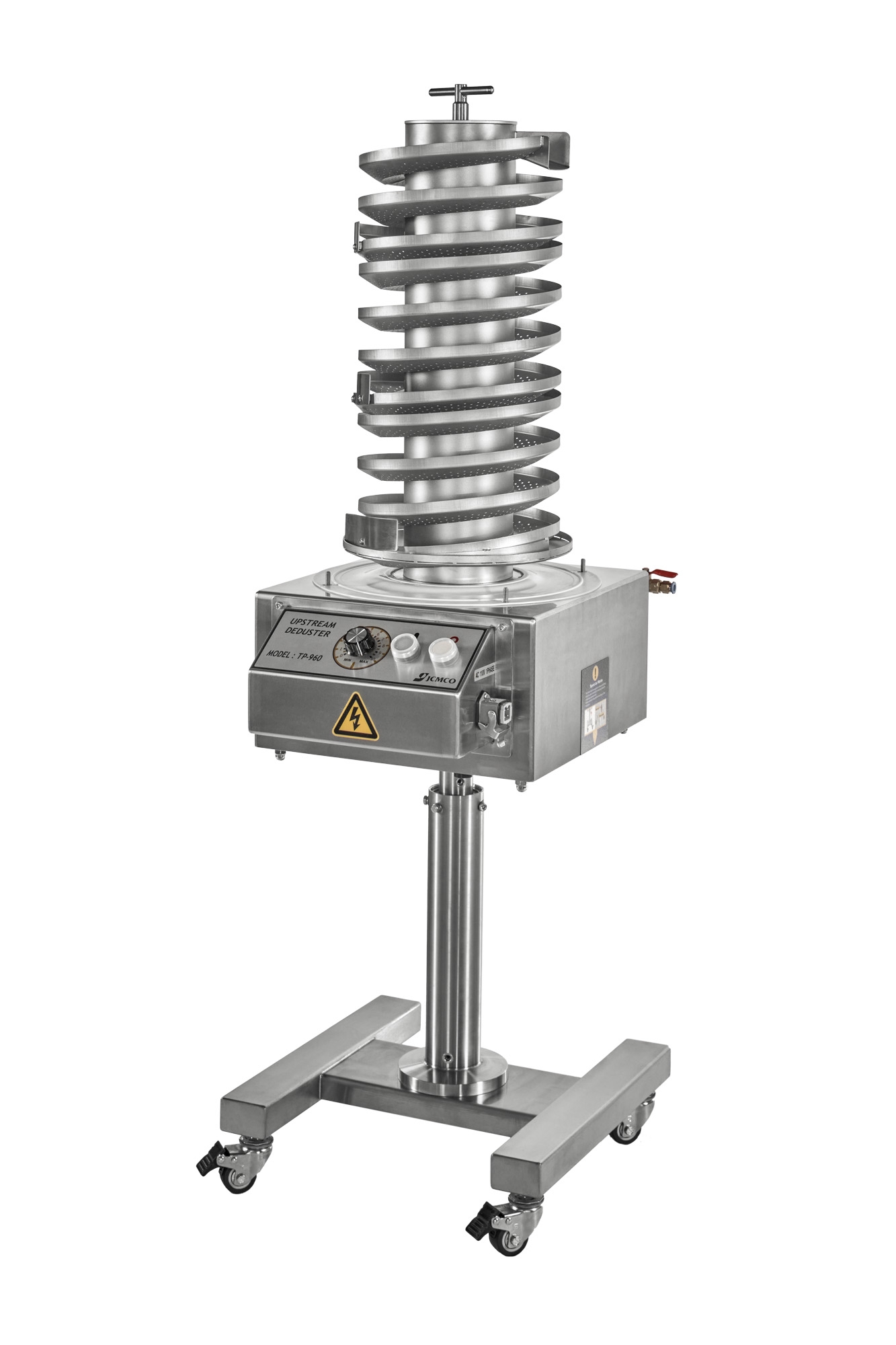

TP-960片劑除粉機
產品介紹
特點
組成:底座,電磁鐵,控制器,托盤座,壓克力罩,上、下篩,簸箕出口,減振裝置,上蓋等
JCMCO Tablet Deduster is equipped with specially designed cleaning system which achieves effective dedusting and makes perfect finishing.
First, the tablets fall into top plate direct from presses and travel by gently vibration, its intensity could be adjusted during operation.
While travelling in 3 meter long perforated stainless steel tray, tablets turn over several times and any loose dust on tablets in blasted with compressed air.
Finally, the dust-laden air is extracted by vacuum collector.
規格
最大輸出效率(tablets/h) | 800,000 |
藥片除塵距離(m) | 6 |
額定功率(W) | 120 |
最大噪音(dB(A)) | <80 |
電源 | AC 110V,60HZ / AC 220V,50HZ |
外型尺寸L*W*H(mm) | 400*530*1400 |
重量 | 67 |
